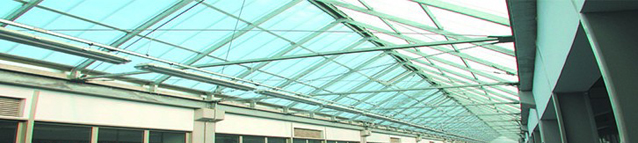

Multi-Wall Polycarbonate Sheets are an ideal choice for applications such as Greenhouses, Roofing, Patio Covers, Pergolas, Sky Lights, Vertical Walls, Office Partitions, Shelters, Canopies, Carports, Pool enclosures and much more. Multi-Wall Polycarbonate Sheets offer high light transmission, excellent thermal values, UV protection, impressive loading capacities and are virtually unbreakable. Produced right here in the USA with over 50 years of experience, our polycarbonate sheets are tested to ASTM standard for hail resistantance, fire and much more. Our multi-wall polycarbonate sheets are also tested by third parties to a variety of other standards including ISO, ASTM, CSTB and many more. Because of all of this our material is backed by a 10 year warranty! Contact us today for a free estimate or with any questions you may have.
Our multi-wall polycarbonate sheets are available in 4 foot and 6 foot widths. They are available in any length up to 39 feet.
We have a variety of colors and thicknesses ranging from 6mm ( 1/4" ) up to 25mm ( 1" ). We also carry a full line of installation accessories to complete your job including both polycarbonate and aluminum profiles as well as fasteners, tapes and sealants. Other brands available upon request.
Click here to see our complete line up of installation accessories
| ITEM | MATERIAL COST ( EXCLUDING FREIGHT & CRATE ) | ||||
|---|---|---|---|---|---|
| $350 - $1,499 | $1,500 - $2,499 | $2,500 - $3,999 | $4,000 - $14,999 | $15,000+ | |
| 6mm clear | $1.37 | $1.31 | $1.25 | $1.18 | $1.12 |
| 6mm colors | $1.52 | $1.45 | $1.38 | $1.31 | $1.24 |
| 8mm clear | $1.84 | $1.66 | $1.57 | $1.49 | $1.40 |
| 8mm colors | $1.99 | $1.80 | $1.71 | $1.61 | $1.52 |
| 10mm clear | $2.10 | $1.90 | $1.80 | $1.70 | $1.60 |
| 10mm colors | $2.30 | $2.09 | $1.98 | $1.87 | $1.76 |
| 16mm clear | $3.37 | $3.11 | $2.95 | $2.79 | $2.63 |
| 16mm colors | $3.67 | $3.40 | $3.22 | $3.05 | $2.87 |
| 25mm clear | $5.35 | $5.11 | $4.87 | $4.63 | $4.39 |
| 25mm colors | $5.80 | $5.54 | $5.28 | $5.01 | $4.75 |
| * $350 Minimum Order ( Excluding Freight and Crate ) | |||||
| TECHNICAL INFORMATION | ||||||
|---|---|---|---|---|---|---|
| Thickness ( mm ) | 6mm | 8mm | 8mm Diffused | 10mm | 16mm | 25mm |
Thickness ( in ) |
1/4" |
5/16" |
5/16" |
3/8" |
5/8" |
1" |
Structure |
2 Wall |
2 Wall |
2 Wall |
2 Wall |
3 Wall |
3 Wall |
Weight ( lbs/sf ) |
0.266 |
0.307 |
0.307 |
0.348 |
0.553 |
0.665 |
R-Factor |
1.639 |
1.724 |
1.720 |
1.923 |
2.500 |
2.941 |
U-Value |
0.610 |
0.580 |
0.580 |
0.520 |
0.400 |
0.340 |
| Additional technical information as well as testing results available upon request... | ||||||
| LIGHT TRANSMISSION % | ||||||
|---|---|---|---|---|---|---|
| 6mm | 8mm | 8mm Diffused | 10mm | 16mm | 25mm | |
Clear |
80 |
81 |
80% Diffused material is only available in a milky/foggy color |
82 |
74 |
72 |
Opal |
57 |
57 |
57 |
52 |
35 |
|
Bronze |
42 |
42 |
42 |
37 |
35 |
|
Blue |
N/A |
N/A |
N/A |
45 |
N/A |
|
Green |
N/A |
N/A |
N/A |
42 |
N/A |
|
