Misting/Fog Fan Options

Versatile Aquafog atomizing fan units can handle a variety of indoor/outdoor humidification or evaporative cooling applications. The nozzle-free fans can atomize ordinary water supplies into a very fine mist-like fog. Utilizing high-speed centrifugal force and powerful air flow, these units can propel a misty-fog stream up to 30 feet away. Units can be gravity-feed and are very resistant to acidic chemicals when used in fumigation applications. Widely used in mid scale commercial and industrial applications to humidify or evaporatively cool large air spaces, but also ideal in spot cooling, fumigation and many other related environmental control applications. Unlike other fog systems, TurboXE Foggers can accept ordinary water supplies, even well or pond water without the risk of clogging. The secret is in the nozzle-free, self-flushing atomization system that forces liquids through passageways in the fan blades, atomizing as the liquid exits the blades. In addition, TurboXEs do not require high-pressure lines. Ordinary pressurized water lines are more than enough, and units can even be gravity-fed. By eliminating specialized pumps and filtering equipment, Aquafog saves time and reduces costs.

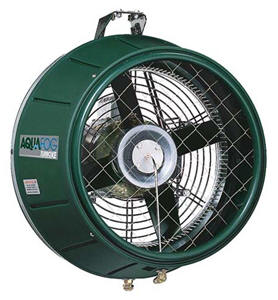

AQUAFOG XE-660 TURBO FAN FOR 50HZ

The unique atomization process combined with the fan’s forced circulation provides high quality fog and uniform fog distribution. The powerful TurboXE is engineered to withstand humid conditions as high as 100% RH and above, and corrosive environments containing salts, lime, ammonia and other acidic compounds. Units are constructed of impenetrable components like Nema 4 connections, all 304 SST hardware, UV stabilized polyethylene plastics, PVC dip-coated steel, and sulfuric anodized aluminum. XE fans are also standard-equipped with a Baldor wash-down-duty motor that is specifically designed for wet, corrosive environments.

TurboXE Fan Features
Standard-equipped with a Baldor wash-down-duty motor for strength and reliability in wet, harsh environments.
Uses ordinary water and power supply to produce high quality, high volume fog.
Fans can be stationary or equipped with oscillation.
Excellent for safe, effective chemical fogging. Used for liquid pesticide and fungicide application, insecticide use and foliar feedings.
Capable of continuous duty operation. XE-660 Fans are standard equipped with a dark green housing and a dual voltage, white epoxy painted wash-down-duty™ (WDD) motor 120/240V, 1ph, 50Hz.

Also Included With Every Fan Unit
Adjustable-angle hanging bracket
Choice of visual flowmeter panel with strainer
12’ SJO indoor/outdoor, heavy-duty power cord
20’ Poly-Flo water line tubing
16’ water drainage line
100% stainless steel hardware
Easy-to-follow operator’s manual
